Silver Single Electric Caravan Step
Getting in and out of the van should be the easy part of the trip. This Silver Single Electric Caravan Step does the work for you. The 12V motor extends the step when you open the door and pulls it back in when you close it, so there's no bending down to drag a step out by hand every time you stop. There's also a rocker switch inside if you'd rather run it in and out yourself.

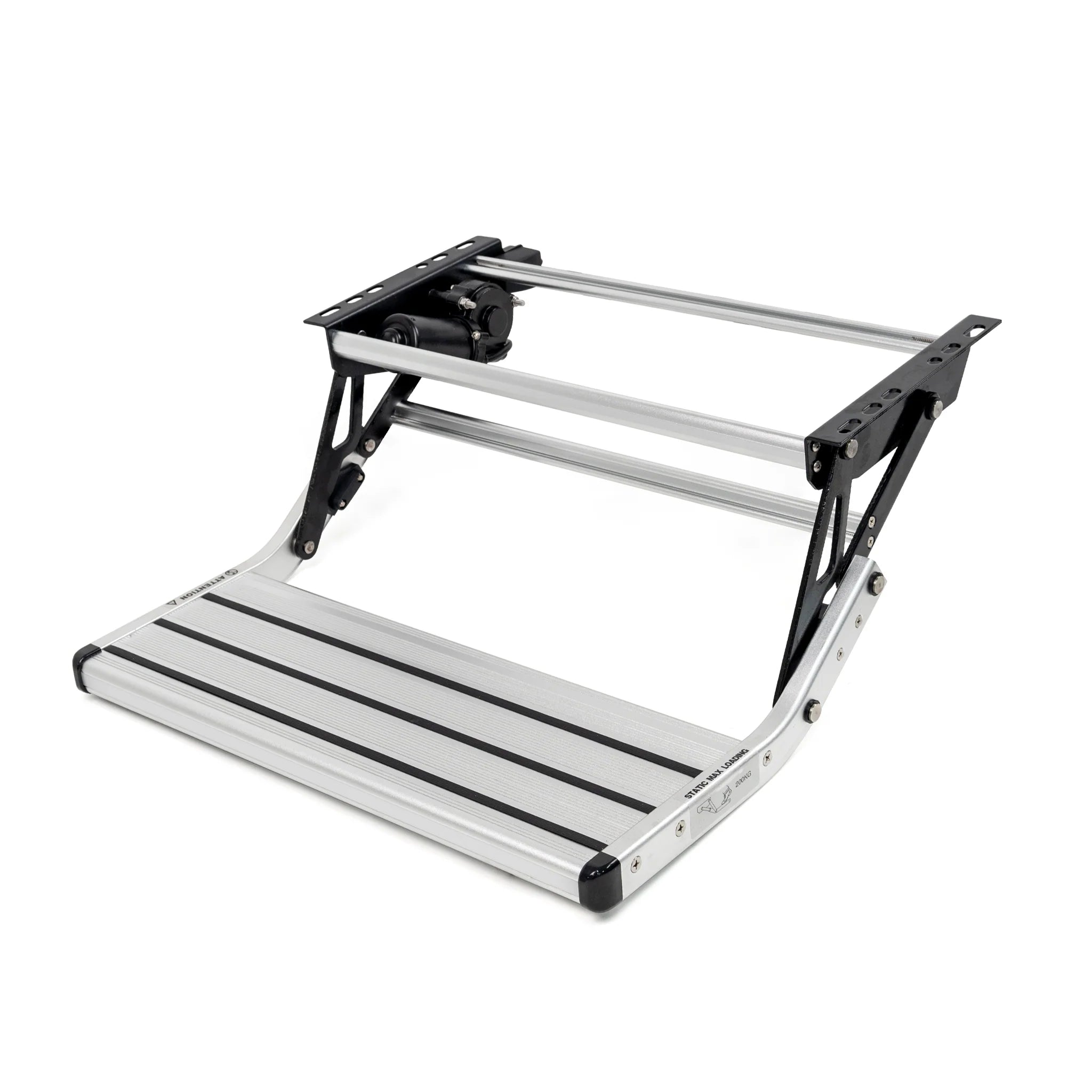

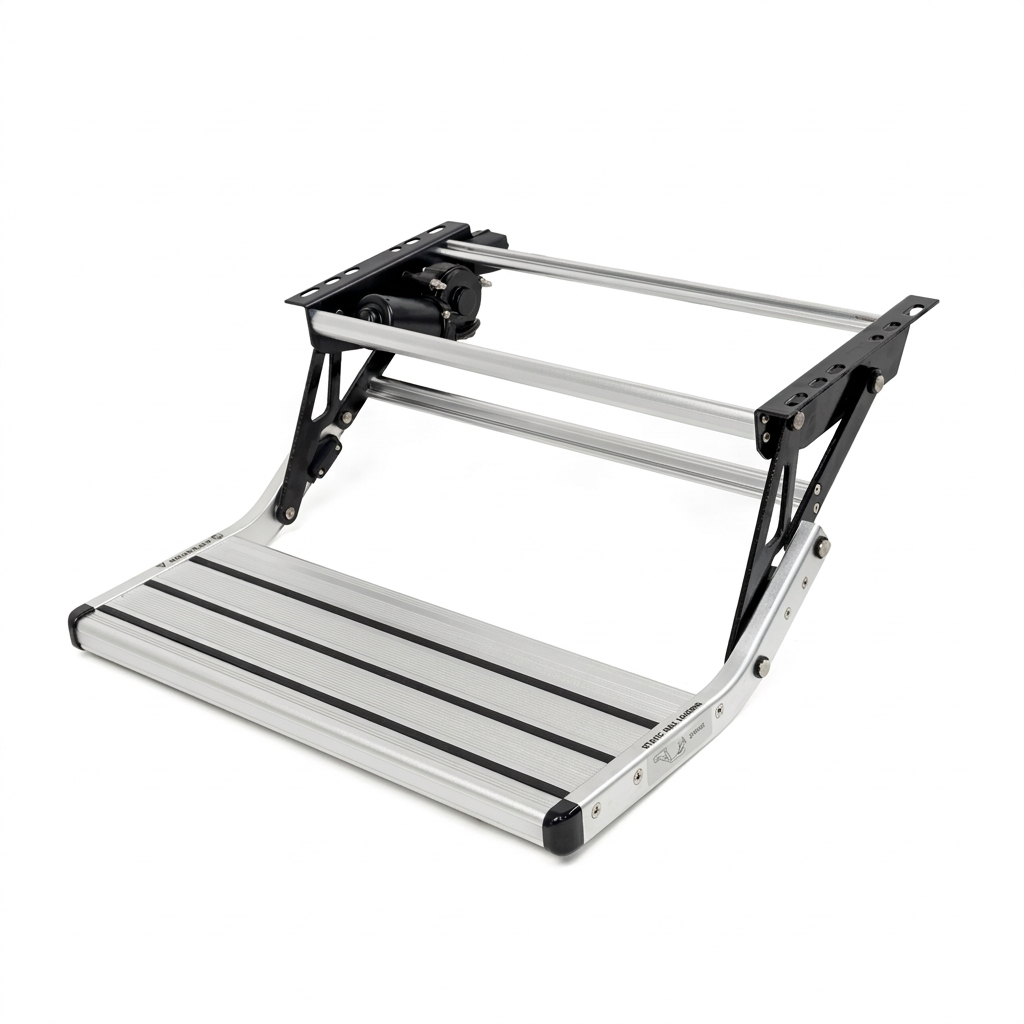

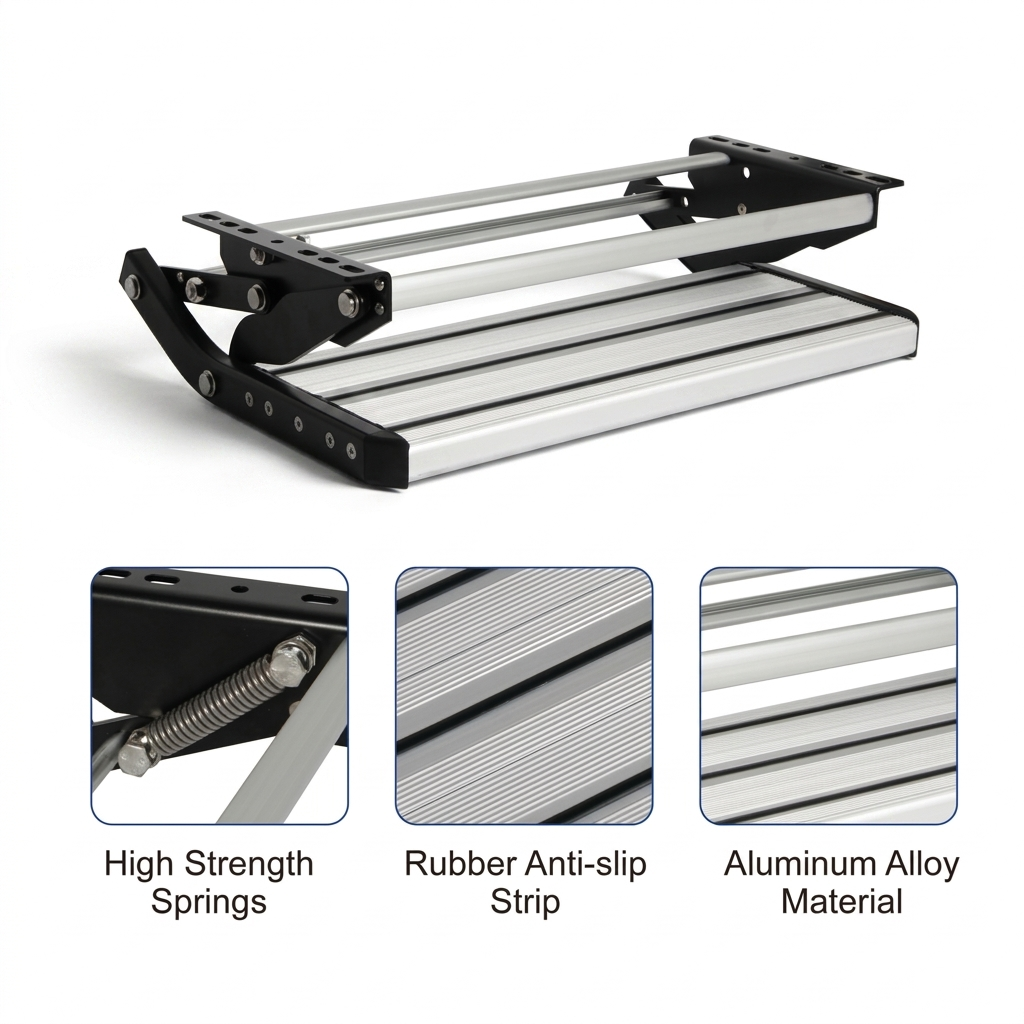

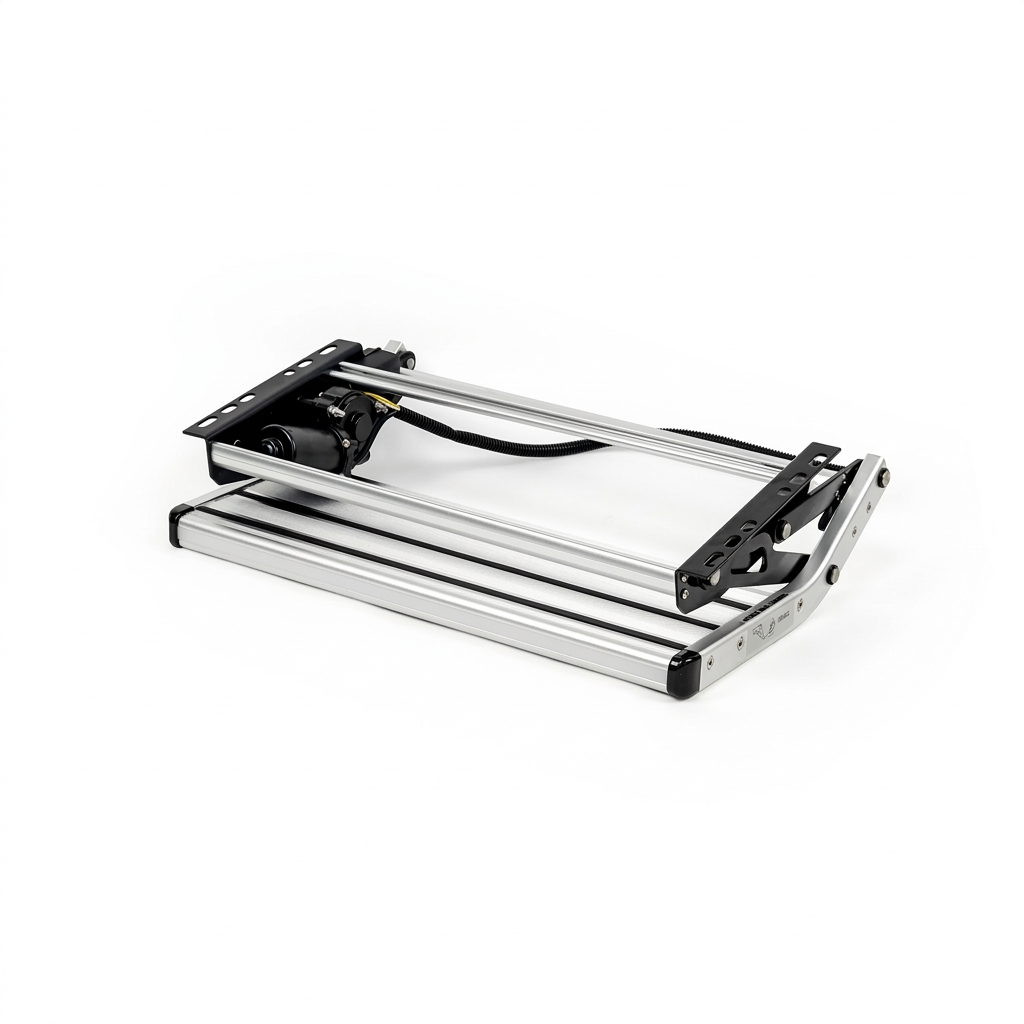

The tread is silver aluminium with non-slip strips across it, set on a black frame, so it looks tidy under the van and holds grip in the wet. When you pack up, the step retracts flush against the chassis, out of the weather and out of the way for travel.
Automatic on the door, or run it yourself
Wired to the supplied door sensor, the step comes out the moment you open the door and retracts when you shut it. The included rocker switch gives you manual control as well, which is handy when you want the step to stay put while the door's open. Plenty of owners run both.
Easy on your battery
The motor is a 12V DC unit rated at 45W, so it runs off your van's system without a heavy draw. A 20A fuse protects the circuit and comes with the wiring harness. There's no separate battery pack or mains power needed.
Built to take the weight
The step is aluminium alloy construction and carries a 200kg static load, which covers adults plus whatever you're carrying through the door. At 550mm wide there's room to plant a full boot, and the single tread sits at a comfortable height for most doorways.
What you get in the box
- Silver single electric step with a 550mm wide non-slip aluminium tread
- Rocker switch for manual control
- Door sensor for automatic operation when the door opens
- Wiring harness with a 20A fuse
- Mounting bolts
- 1-year RV Essentials warranty
Fitting it
The step bolts to a flat section of chassis under the doorway, and the wiring runs into your 12V supply. Because there's a motor and door-sensor wiring to connect, we'd recommend having it fitted by an auto electrician or a caravan tech unless you're confident with 12V wiring. Getting the wiring right the first time saves a lot of mucking about later.
Single step or double?
A single step suits vans where the drop from the ground to the doorway is on the smaller side. If your van sits high and the climb is a big stretch, a two-tier step splits that height into two easier stages. If you'd prefer no motor or wiring at all, the manual silver single pull-out step does the same job by hand, and the double pull-out step is worth a look for a taller doorway. A solid grab handle beside the door pairs well with any of them for a
| Product Type | Electric Single Caravan Step |
| Operation | Electric, automatic via door sensor plus rocker switch |
| Number of Steps | Single |
| Colour | Silver tread, black frame |
| Material | Aluminium alloy |
| Rated Voltage | 12V DC |
| Rated Power | 45W |
| Maximum Static Load | 200kg |

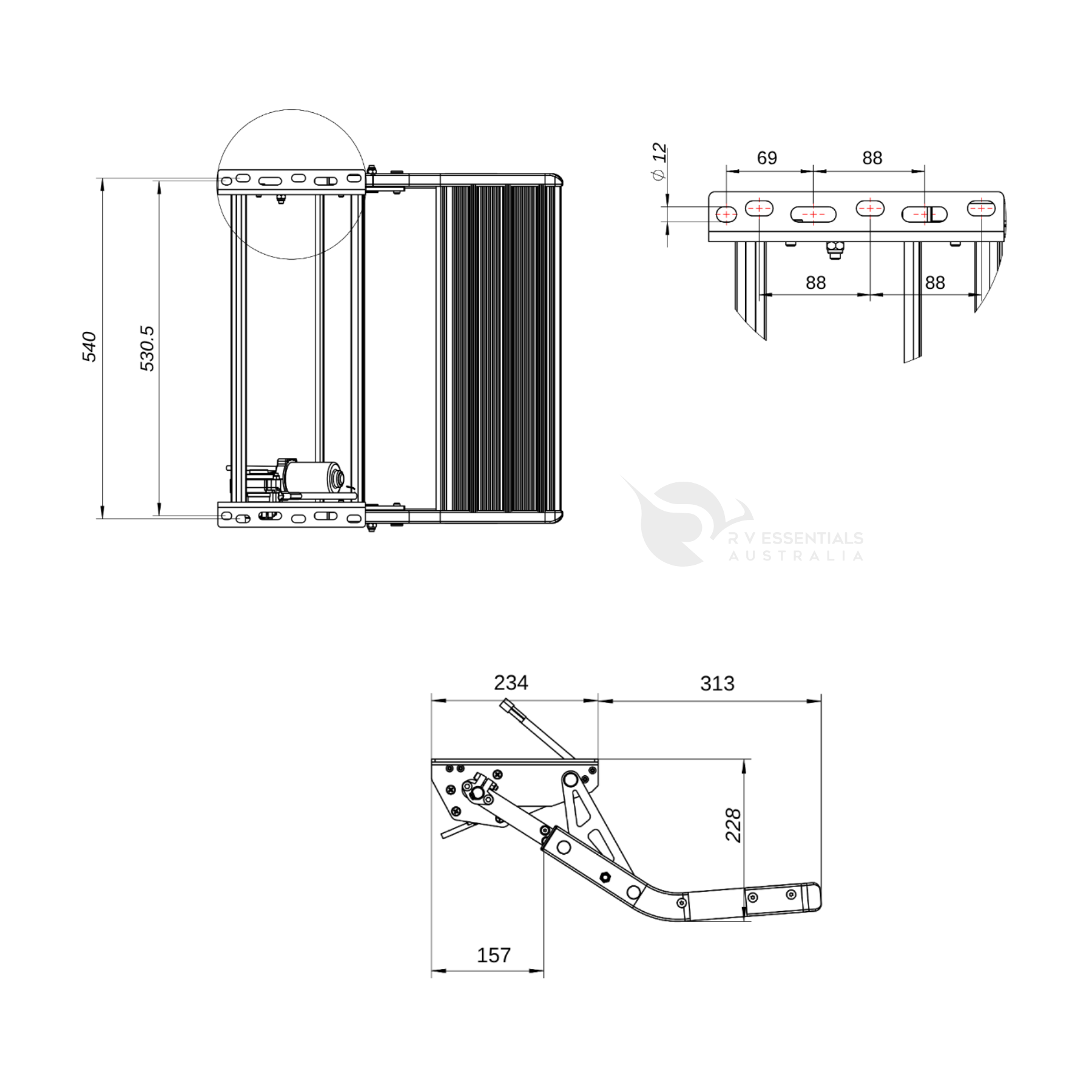

| Step Width | 550mm |
| Unfolded Length | 547mm |
| Deployment Height | 228mm |
| Stowed Height | 150mm |
| Product Weight | 6.5kg |
| Step Surface | Non-slip aluminium tread |
| Circuit Protection | 20A fuse (included) |

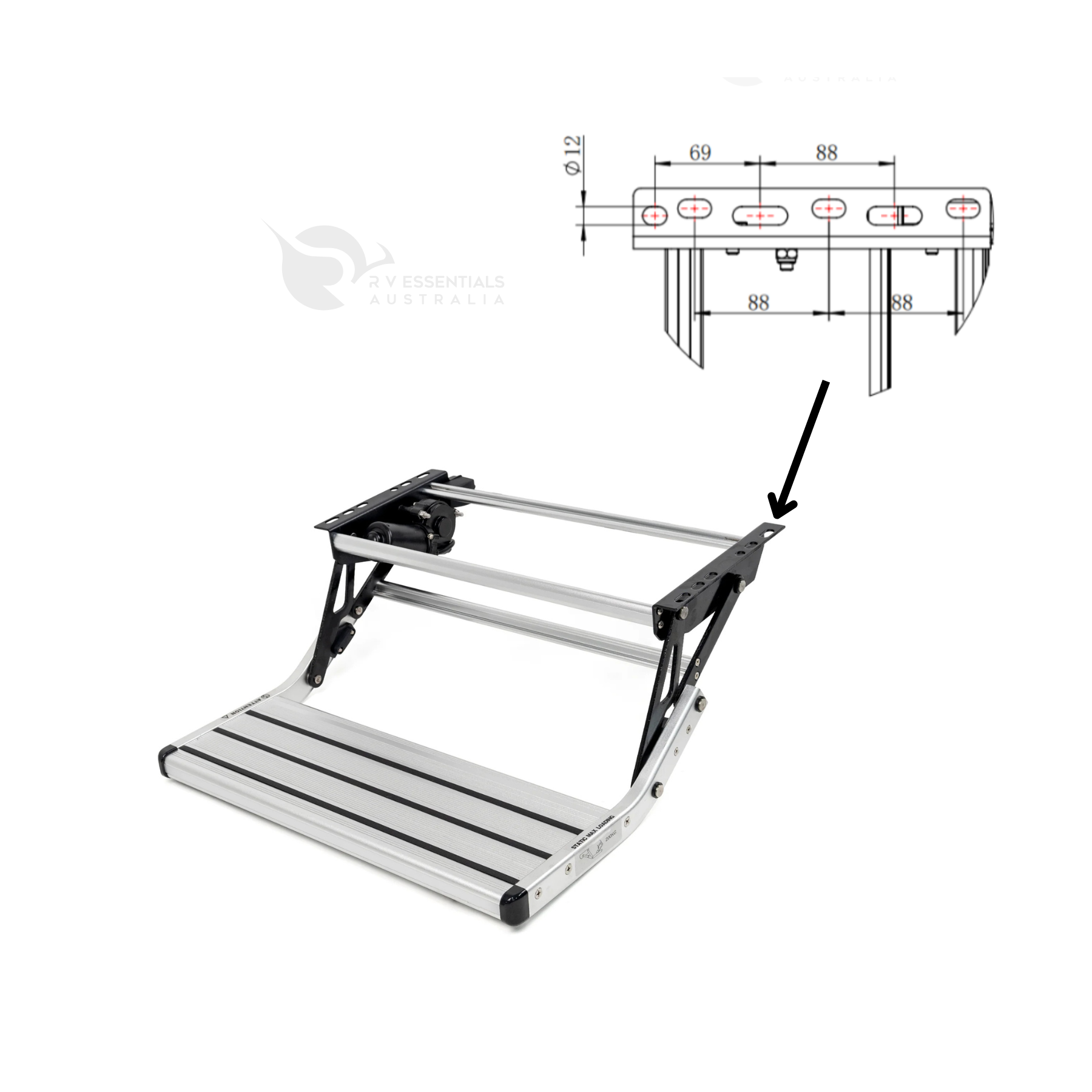

| Mounting | Slotted holes for 12mm bolts (bolts included) |
| In the Box | Step, rocker switch, door sensor, wiring harness, 20A fuse, mounting bolts |
| Warranty | 12 months |
Frequently Asked Questions
Will this step fit my caravan?
It suits a lot of caravans and motorhomes, but it isn't a universal fit. You need roughly 550mm of width and a flat section of chassis under the door to bolt to, plus room for the step to swing out to its unfolded length of 547mm. Measure the space before you order.
Is it 12V?
Yes. It runs off your van's 12V DC system. The motor is rated at 45W, so it's an easy draw on the battery.
How does the electric step work?
Wired to the supplied door sensor, it extends when you open the door and retracts when you close it. You also get a rocker switch to run it in and out by hand whenever you like.
Does it come out automatically when I open the door?
Yes, once the door sensor is wired in. If you'd rather control it yourself, use the switch instead.
What's included?
The step, the rocker switch, the door sensor, the wiring harness with a 20A fuse, and the mounting bolts.
How much weight can it hold?
It's rated to a 200kg static load, which covers adults plus anything you're carrying through the door.
What are the dimensions?
The tread is 550mm wide. Extended, it reaches out about 547mm and sits 228mm below the frame. Folded, it packs back to 150mm high against the chassis.
How much does it weigh?
About 6.5kg.
What fuse does it use?
A 20A inline fuse, which is supplied with the wiring harness.
Does it need professional installation?
It bolts up with the supplied bolts, but there's a motor and door-sensor wiring to connect. Unless you're confident with 12V wiring, we'd recommend having an auto electrician or caravan tech fit it so the wiring is right the first time.
What happens if the power fails?
This is a powered step, so it isn't meant to be pushed in and out by hand day to day. Emergency manual retraction is possible, but it isn't a simple push. As set out in the manual, the motor output shaft has to be mechanically disconnected at the fixed point first, and then the step can be pushed back and secured. It's a job for someone comfortable working on the mechanism, so the sensible approach is to keep your 12V supply in good order and check the fuse first if the step ever stops responding.
Is the tread non-slip?
Yes. The silver aluminium tread has non-slip strips across it for grip in wet weather.
Should I get a single or a double step?
Go with the single when the drop from the ground to the doorway is fairly small. If your van sits high and the climb is a big stretch, the double pull-out step splits the height into two easier stages.
Do you have a manual version?
Yes. If you'd rather not have a motor or wiring, the manual silver single pull-out step does the same job by hand.
Does it need much maintenance?
Not much. Keep grit off the moving joints, give them an occasional spray of light lubricant, and check the mounting bolts and wiring connections are still tight now and then, especially after a stretch of corrugated roads.
What's the warranty?
It comes with a 1-year RV Essentials warranty.
